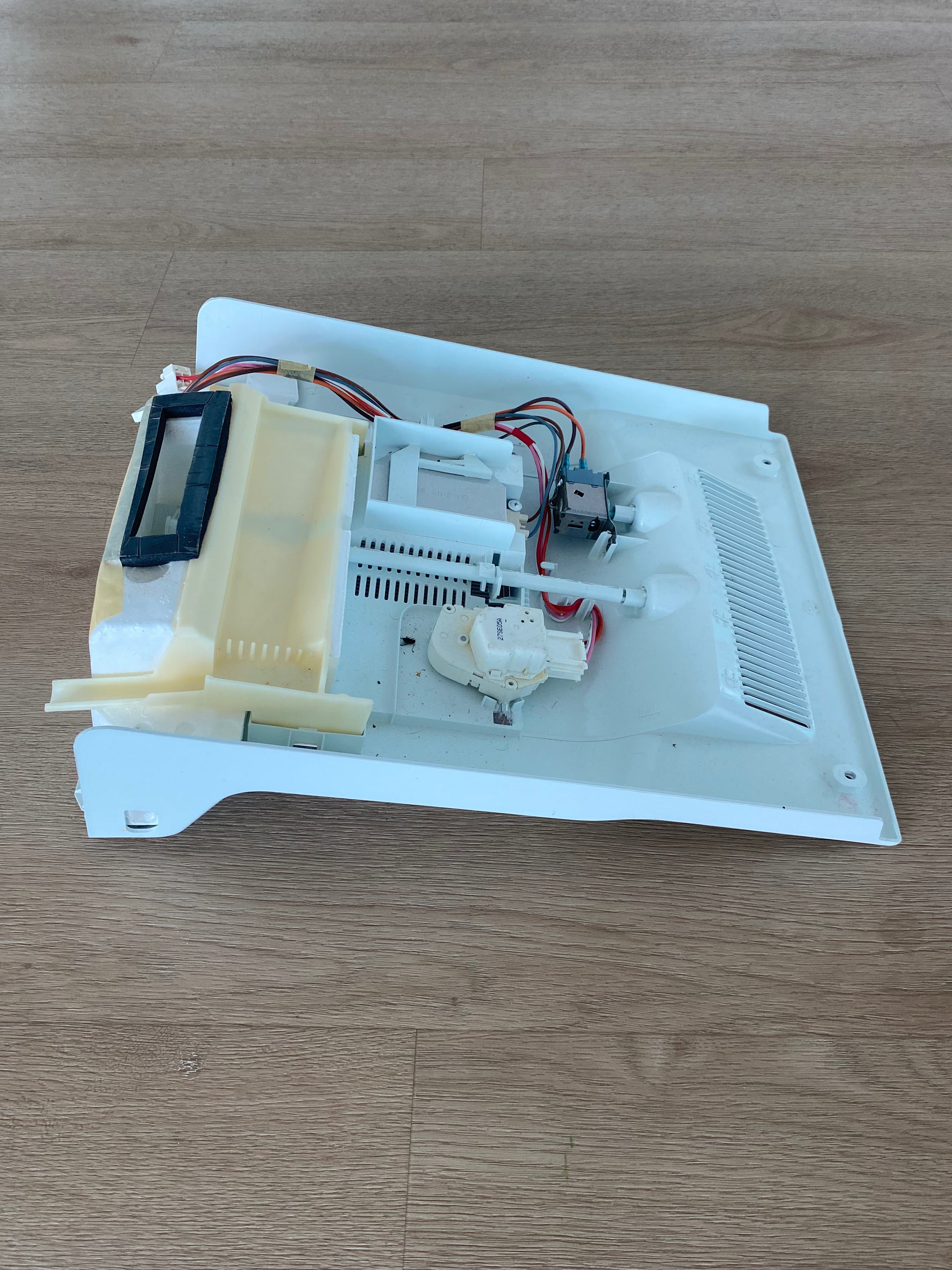

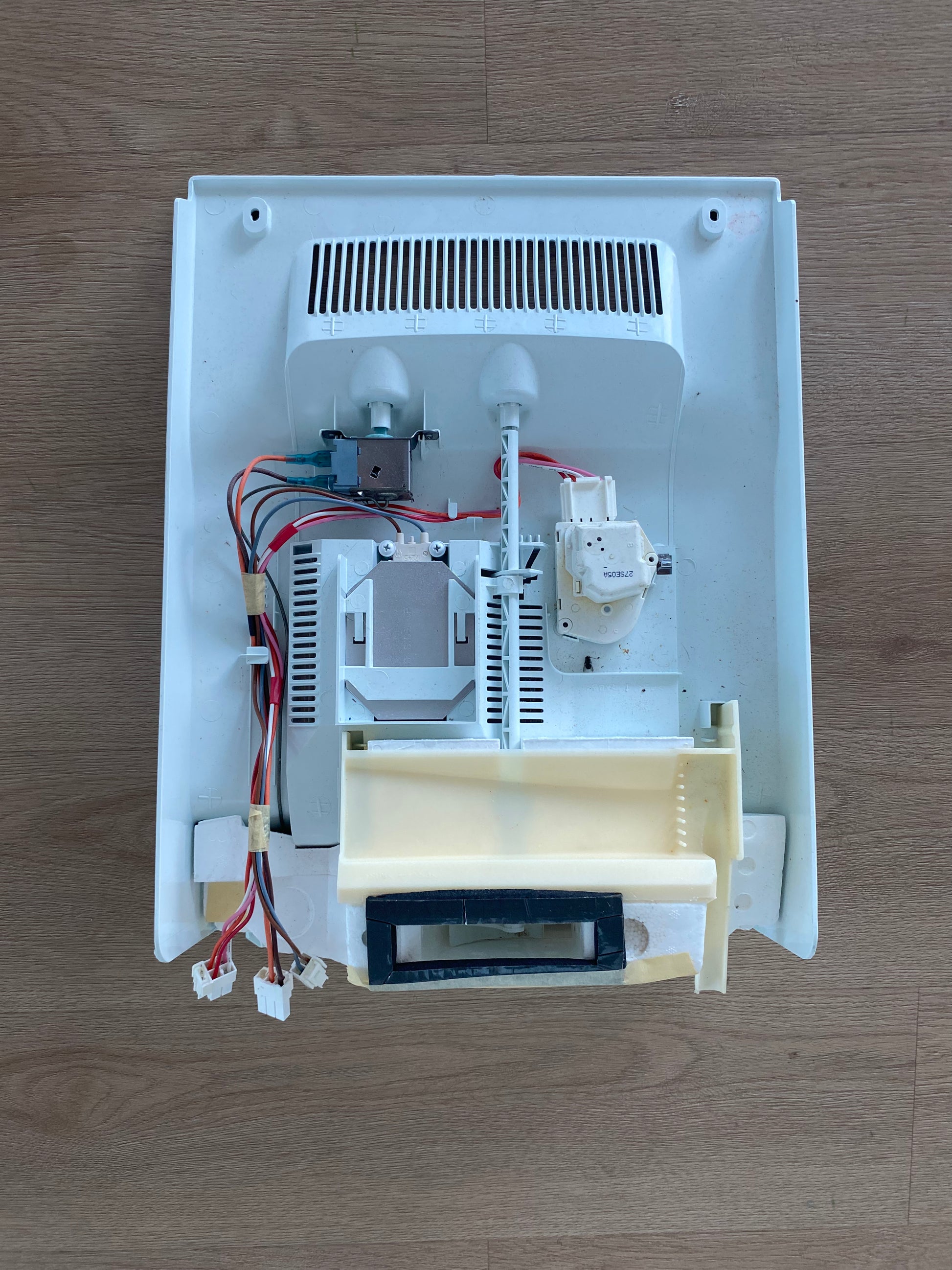

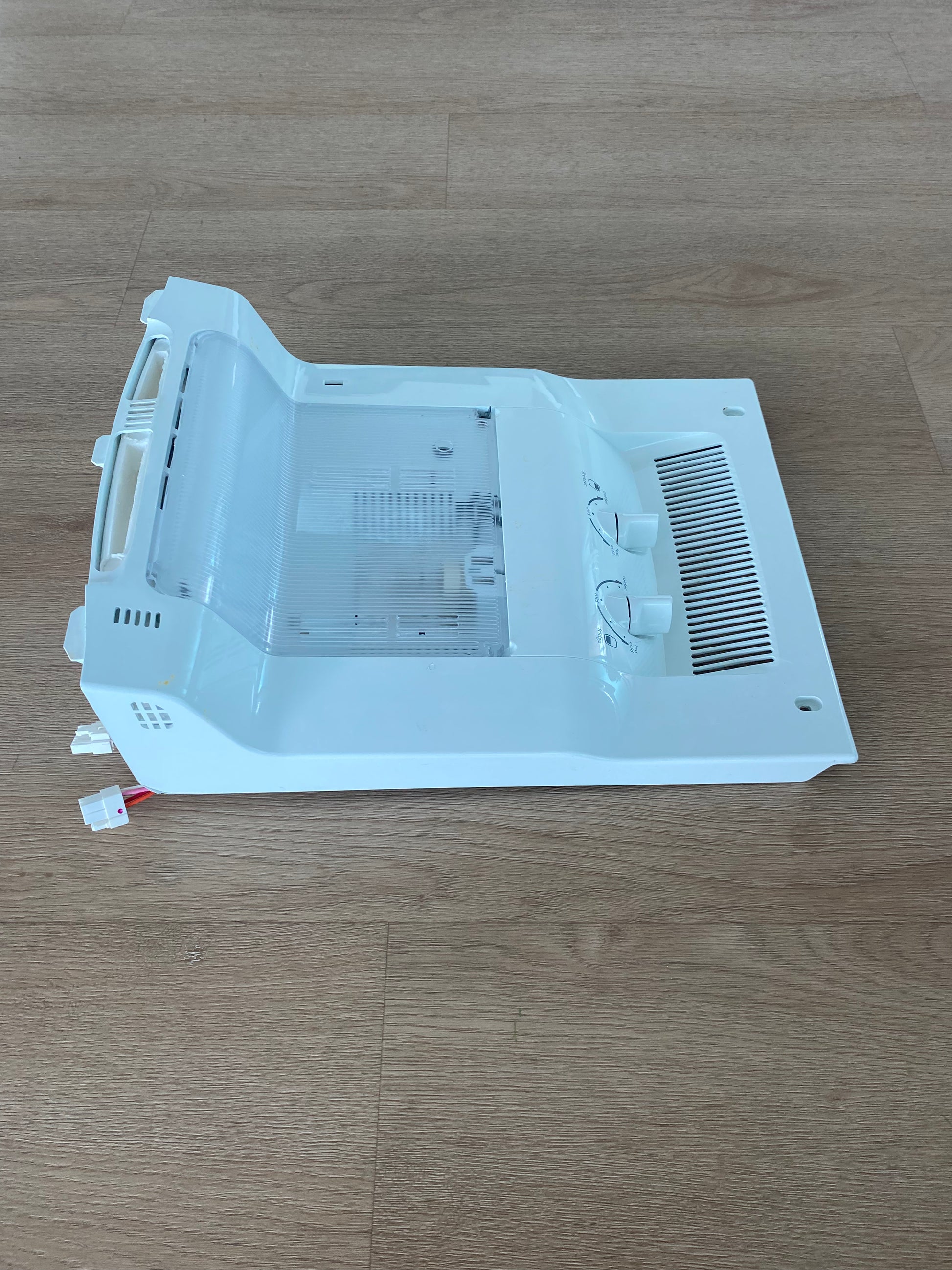

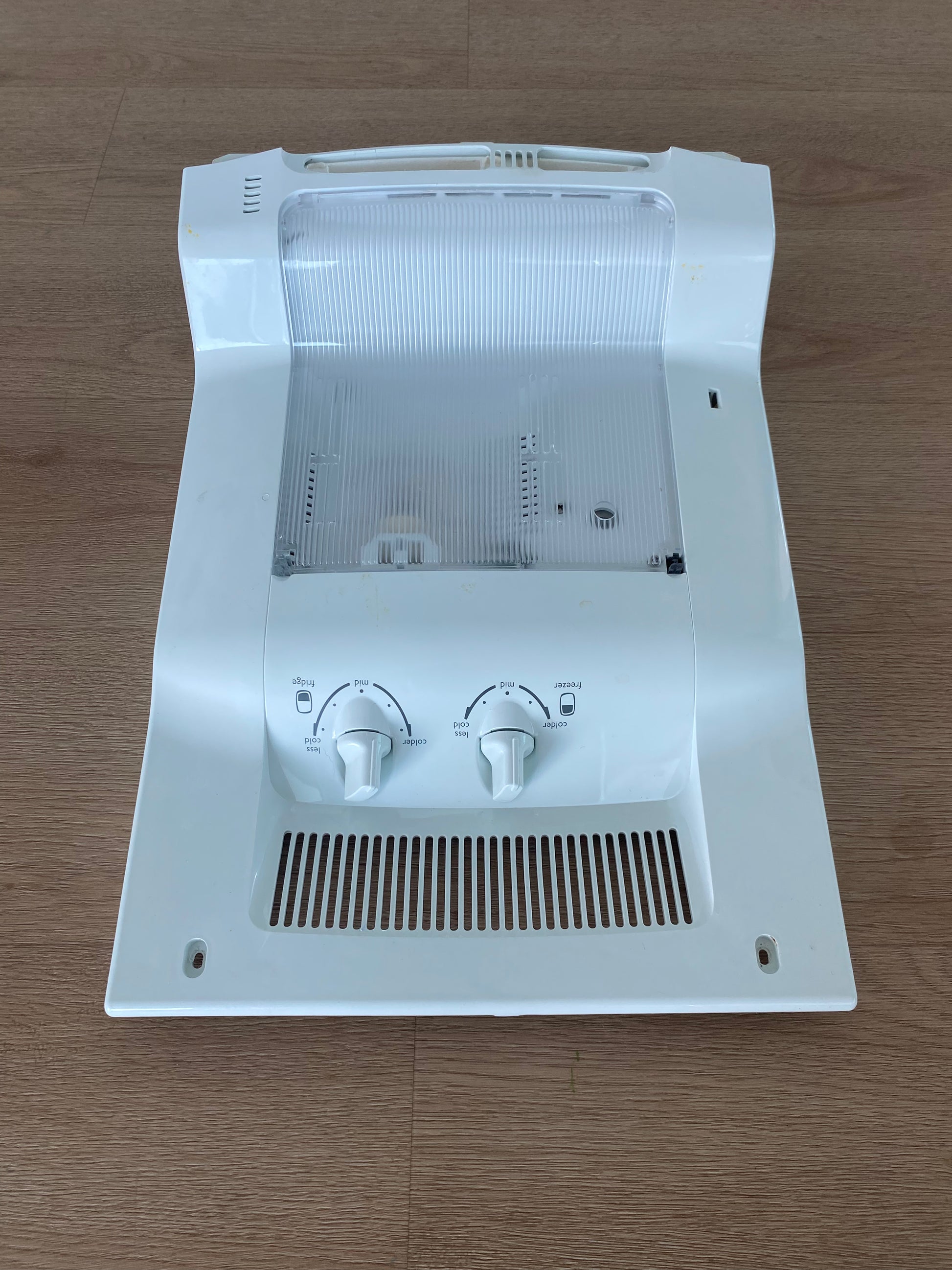

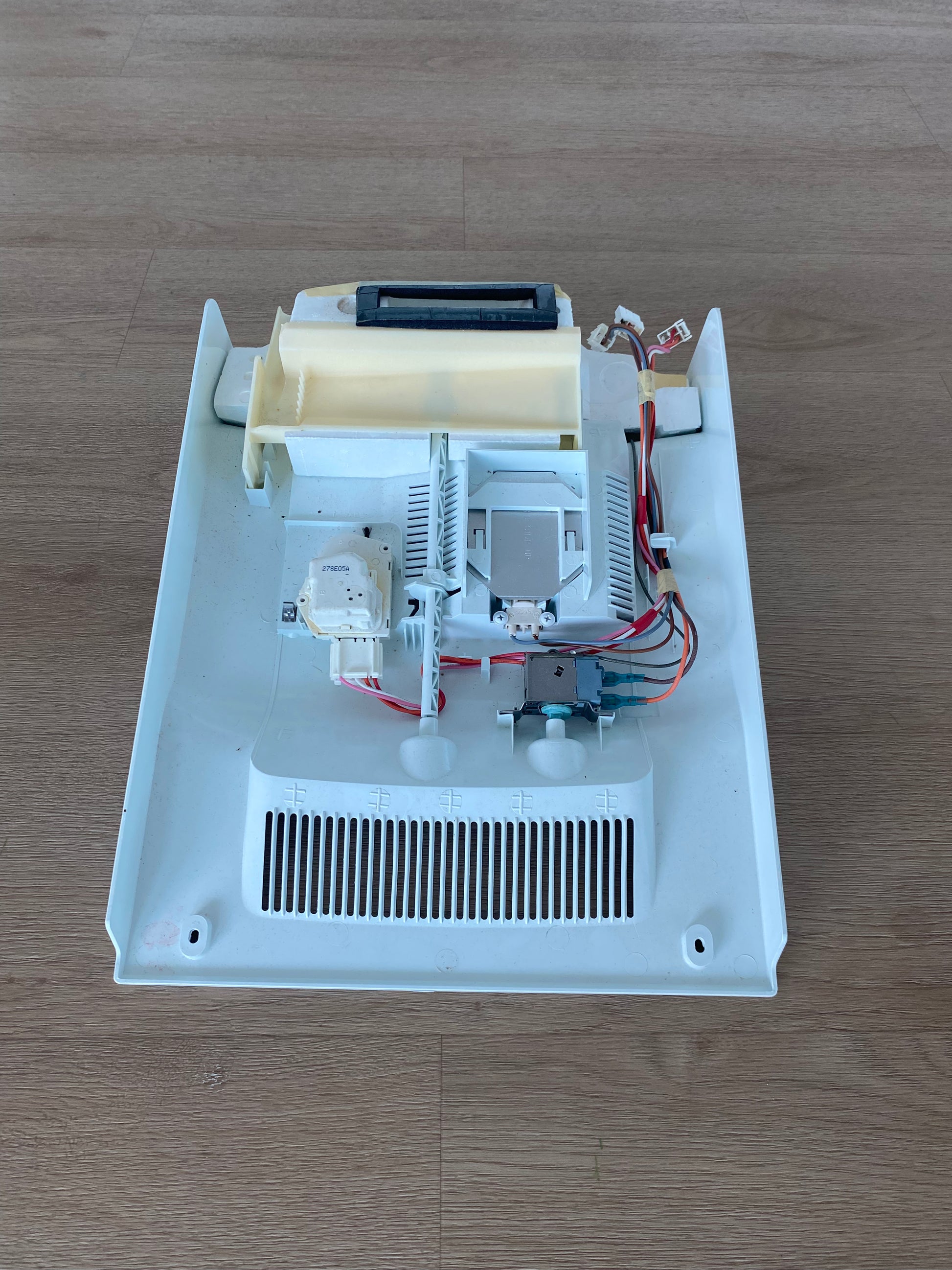

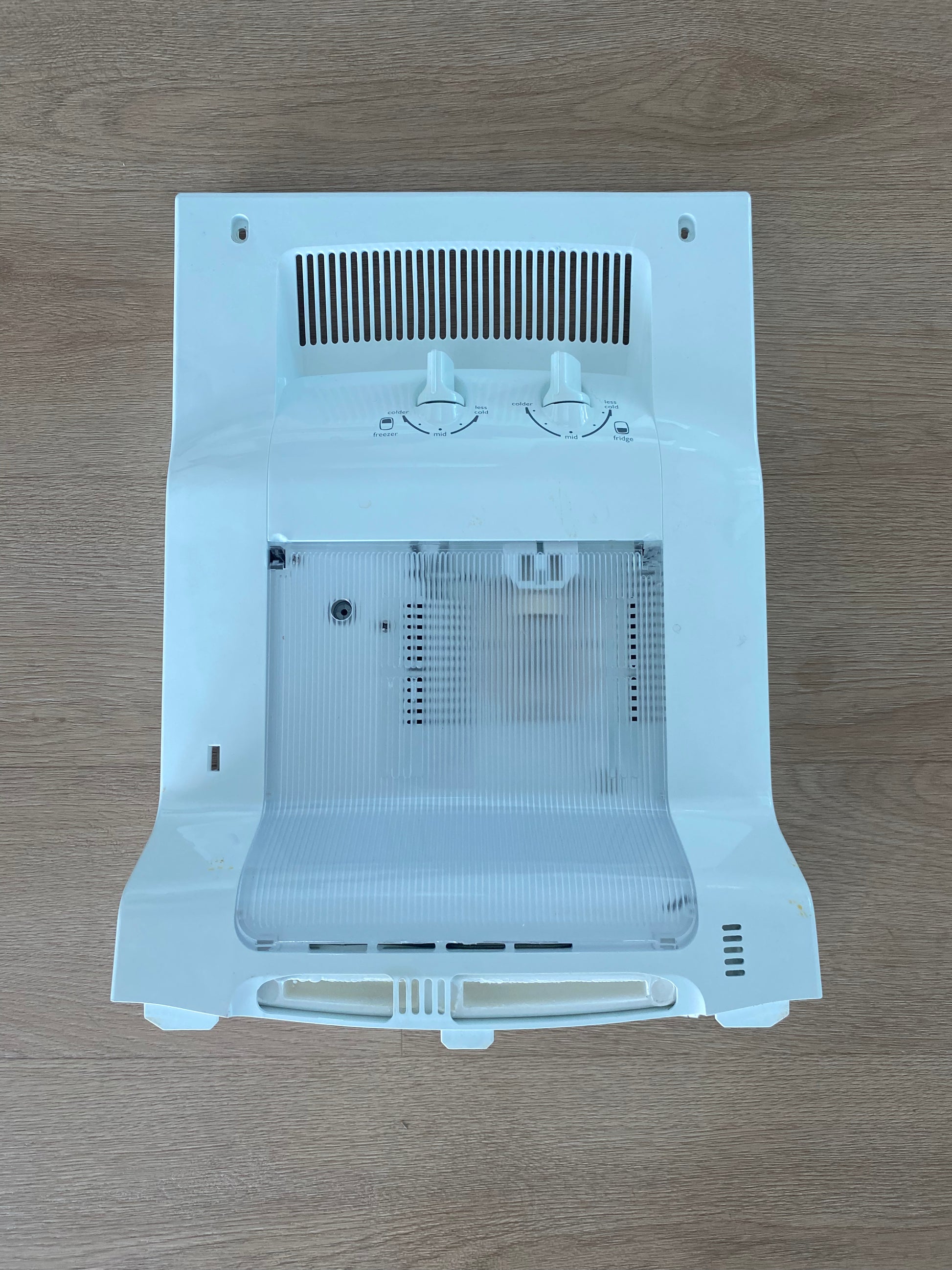

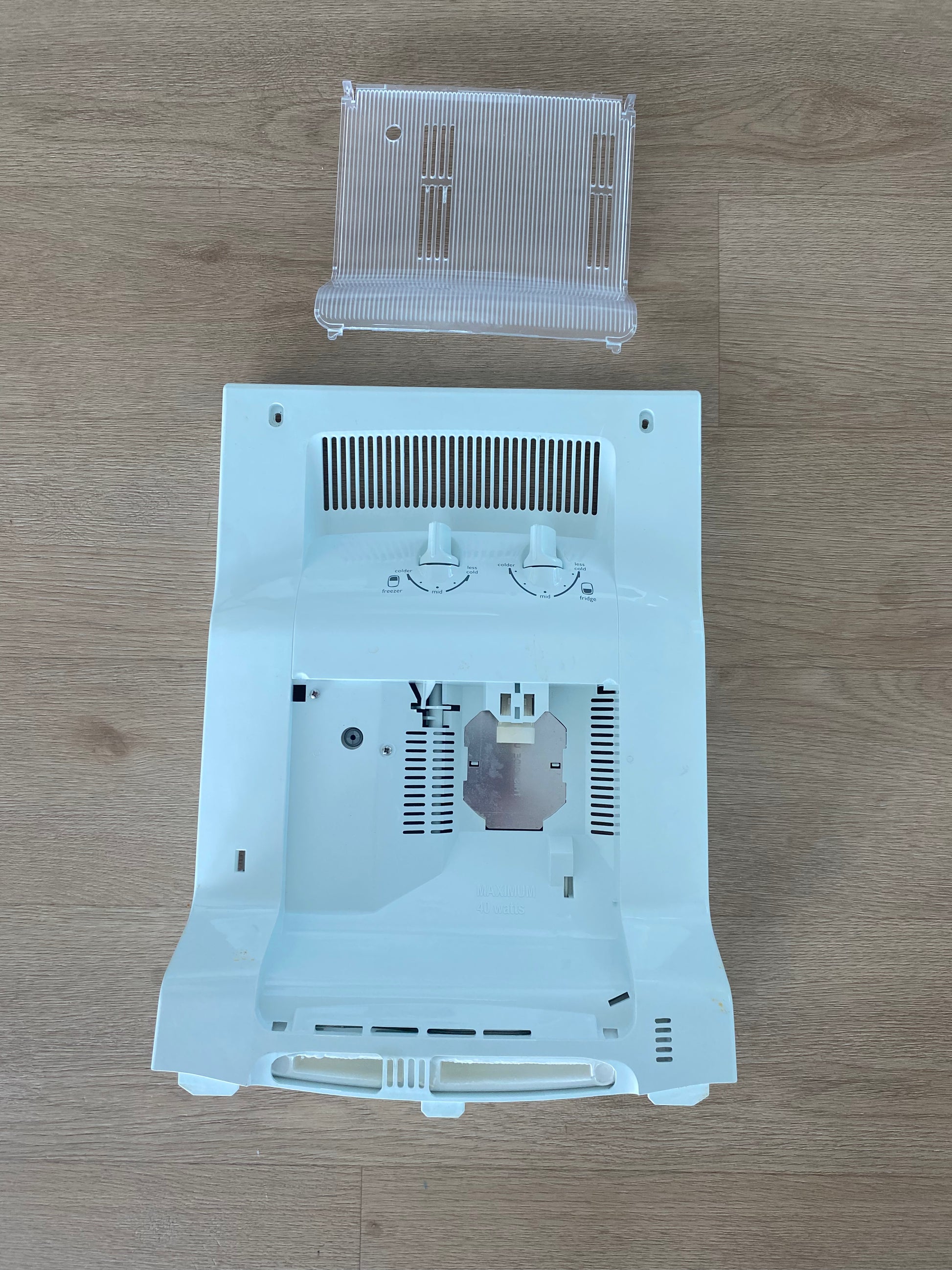

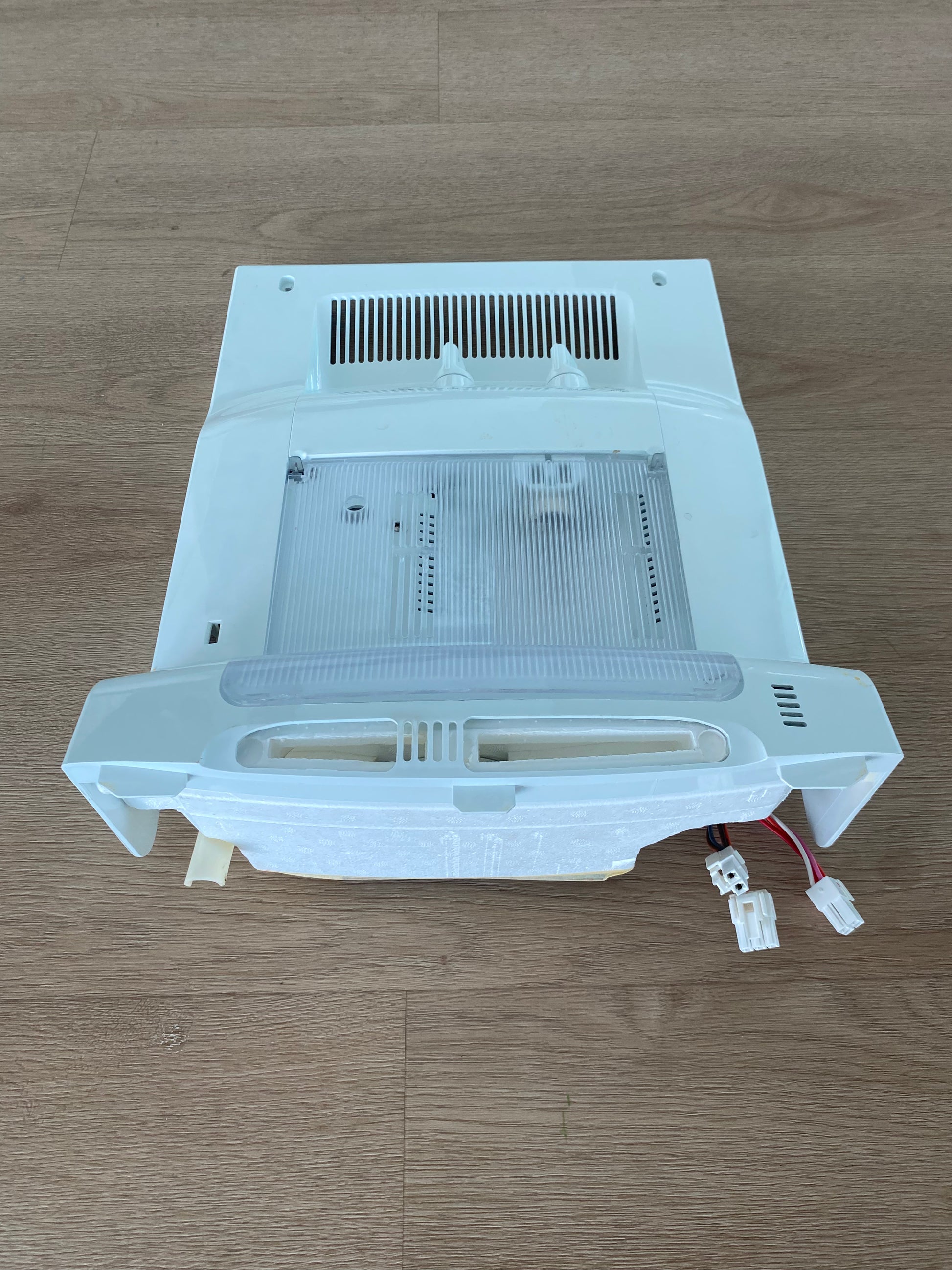

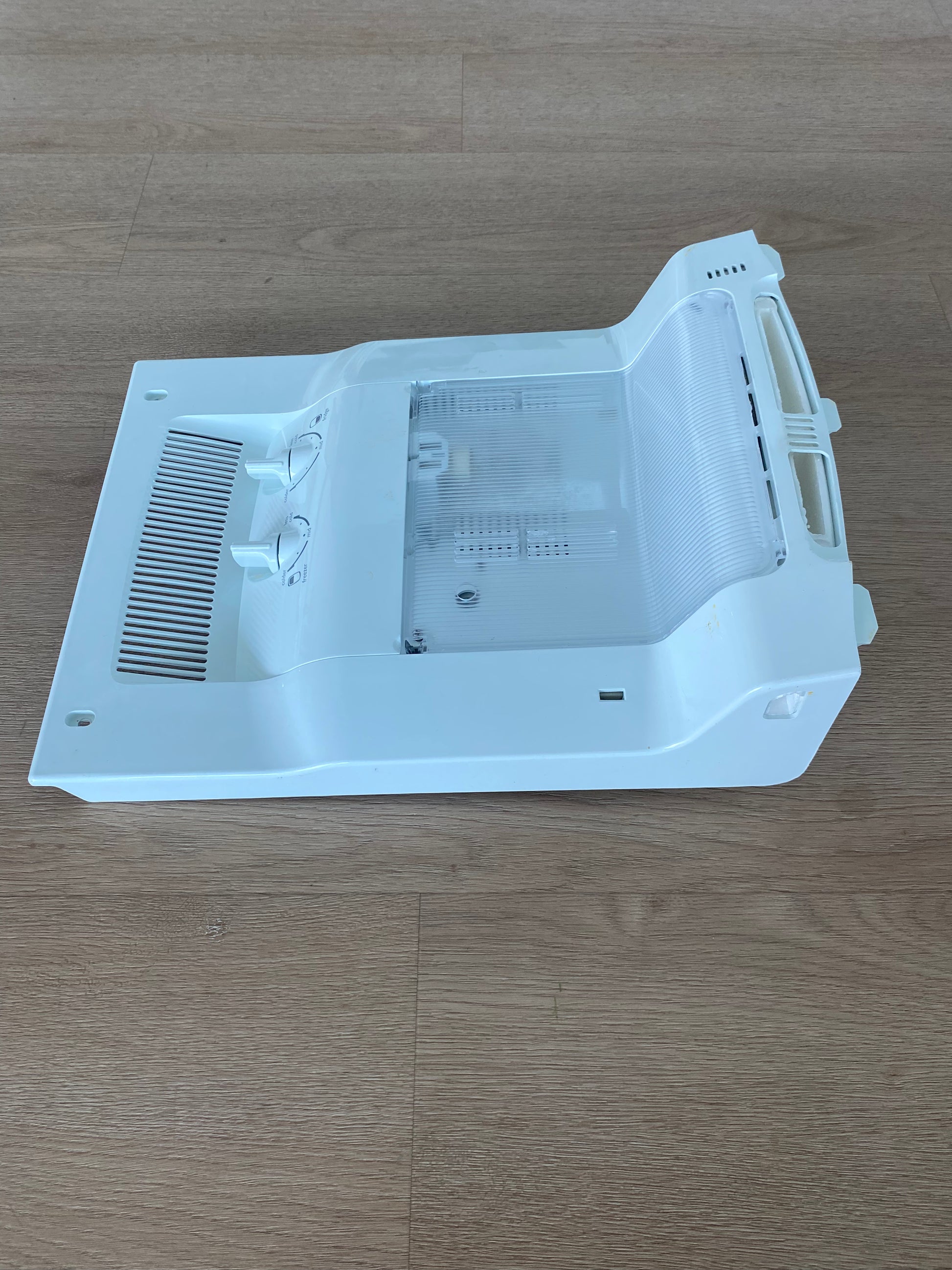

1453538 1454447 Electrolux Kelvinator Simpson Westinghouse top mount fridge freezer control housing

Key Details
Width (cm):
Depth (cm):
Height (cm):
Colour: White
Material: ABS Plastic

MPN / Part number(s)
Confusingly, some distributors use their own part numbers which are also included:

• 1453538 (OEM)
• 1599424 (Big Warehouse Spares)
• W0088119 (Wholesale Appliance Supplies - housing control top assy)
• W0088230 (Wholesale Appliance Supplies - control board ERF450 & kit assy)
• W0018364 (Wholesale Appliance Supplies - controller assy)

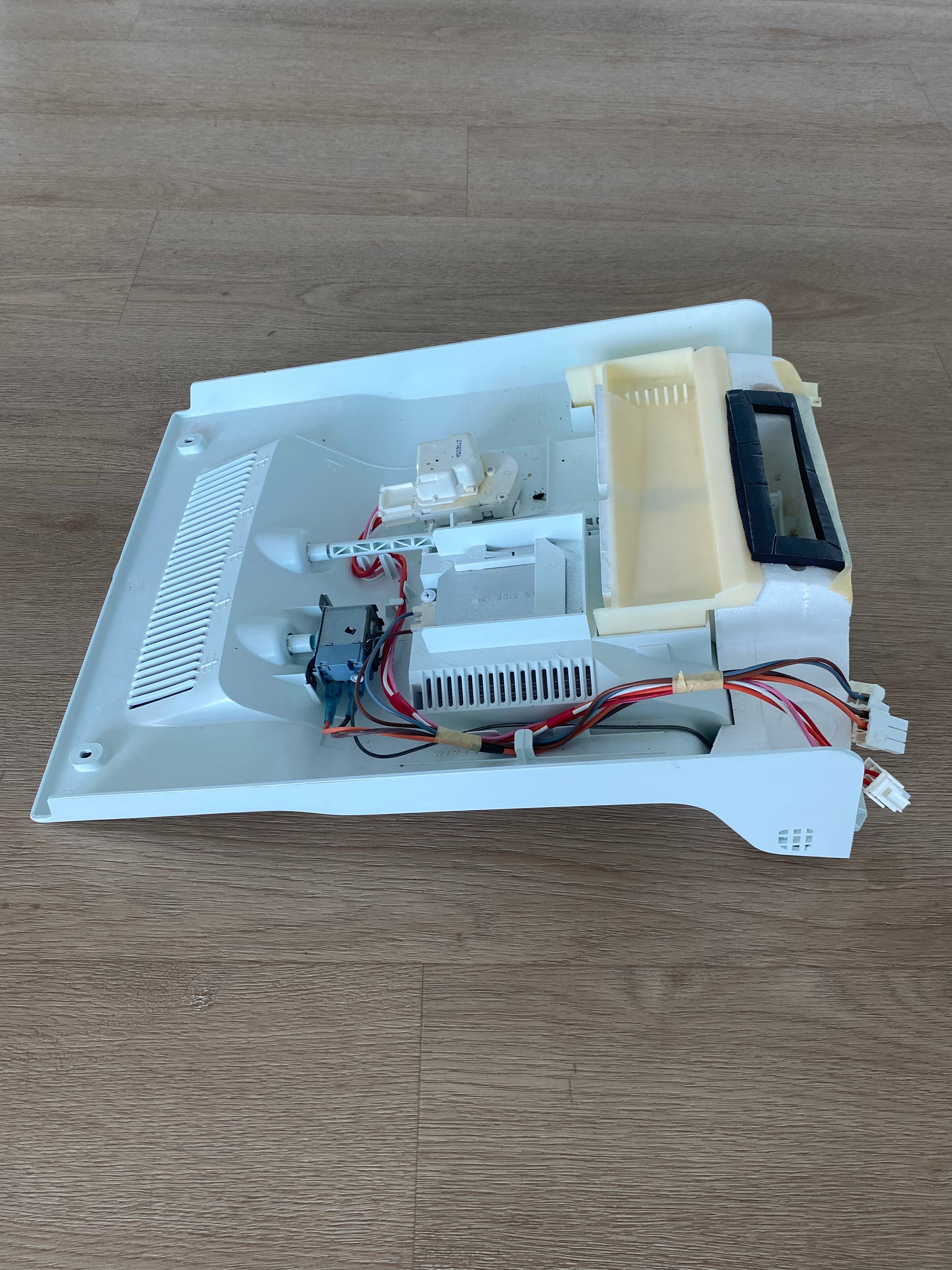

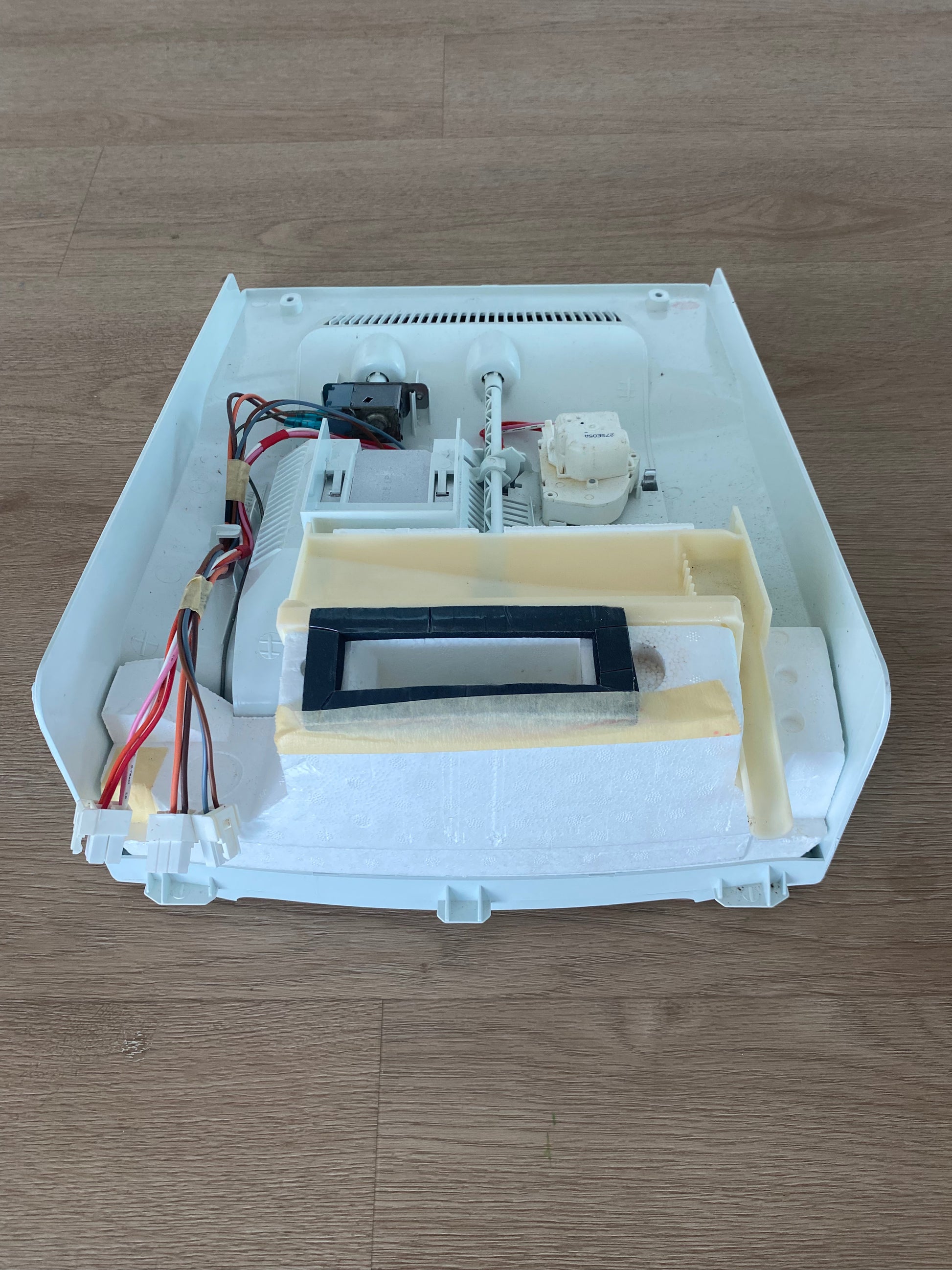

Component Parts

• 1442017 Drain
• 1445148 Gasket
• 1447203 EPS Upper
• 1453082 Baffle
• 1454582 EPS Lower
• 1451285 Lamp, 40 watt E14SES
• 1453302 Gasket, Sealing, Lamp
• 1454035 Lampholder & Harness
• 57010109 Foam Tape
• 1449005 Thermostat, Daesung
• 1406612 Sticker, Maximum 40 watts
• 1454447 Housing, Control Dec
• 1443704 Cover, Toggle Lock
• 1442088 Lens, Light
• 1449412 Screw, #8 x ½” TF Flange HD WHT
• 1447252 Knob, Control
• 1446040 Screw, Timer 6GA ¾ Pan Phillips STS
• 1451332 Harness, Defrost Timer
• 1448728 Timer, Defrost Invensys
• 1450957 Shield, Light

Compatible Models
This part fits thousands of fridge freezer models in the Electrolux family - including but not limited to the models below. If you're not sure if it fits your fridge, contact us on our chat function and we'll let you know!

Electrolux

• TBC

Kelvinator

703w x 647d x 1640h

• KTM3600WA

• KTM3600WA-L

• KTM3600WA-R

• KTM3600WA*6

• KTM3600WA-L*6

• KTM3600WA-R*6

• KTM3600WB

• KTM3600WB-L

• KTM3600WB-R

• KTM3600WB*6

• KTM3600WB-L*6

• KTM3600WB-R*6

• KTM3600WB*7

• KTM3600WB-L*7

• KTM3600WB-R*7

• KTM3600WB*8

• KTM3600WB-L*8

• KTM3600WB-R*8

703w x 647d x 1720h

• KTM3900MA

• KTM3900MA-L

• KTM3900MA-R

• KTM3900MA*6

• KTM3900MA-L*6

• KTM3900MA-R*6

• KTM3900MB

• KTM3900MB-L

• KTM3900MB-R

• KTM3900MB*6

• KTM3900MB-L*6

• KTM3900MB-R*6

• KTM3900PC

• KTM3900PC-L

• KTM3900PC-R

• KTM3900WA

• KTM3900WA-L

• KTM3900WA-R

• KTM3900WA*6

• KTM3900WA-L*6

• KTM3900WA-R*6

• KTM3900WB

• KTM3900WB-L

• KTM3900WB-R

• KTM3900WB*6

• KTM3900WB-L*6

• KTM3900WB-R*6

• KTM3900WB*7

• KTM3900WB-L*7

• KTM3900WB-R*7

• KTM3900WB*8

• KTM3900WB-L*8

• KTM3900WB-R*8

703w x 709d x 1640h

• KTM4200PA

• KTM4200PA-L

• KTM4200PA-R

• KTM4200PA*6

• KTM4200PA-L*6

• KTM4200PA-R*6

• KTM4200PB

• KTM4200PB-L

• KTM4200PB-R

• KTM4200WA

• KTM4200WA-L

• KTM4200WA-R

• KTM4200WA*6

• KTM4200WA-L*6

• KTM4200WA-R*6

• KTM4200WB

• KTM4200WB-L

• KTM4200WB-R

• KTM4200WB*6

• KTM4200WB*6-L

• KTM4200WB*6-R

• KTM4200WB*7

• KTM4200WB-L*7

• KTM4200WB-R*7

• KTM4200WB*8

• KTM4200WB-L*8

• KTM4200WB-R*8

703w x 709d x 1720h

• KTM4400WA

• KTM4400WA-L

• KTM4400WA-R

• KTM4400WA*6

• KTM4400WA-L*6

• KTM4400WA-R*6

• KTM4400WB

• KTM4400WB-L

• KTM4400WB-R

• KTM4400WB*6

• KTM4400WB-L*6

• KTM4400WB-R*6

• KTM4400WB*7

• KTM4400WB-L*7

• KTM4400WB-R*7

• KTM4400WB*8

• KTM4400WB-L*8

• KTM4400WB-R*8

803w x 709d x 1720h

• KTM5200MA

• KTM5200MA-L

• KTM5200MA-R

• KTM5200MA*6

• KTM5200MA-L*6

• KTM5200MA-R*6

• KTM5200MB

• KTM5200MB-L

• KTM5200MB-R

• KTM5200MB*6

• KTM5200MB-L*6

• KTM5200MB-R*6

• KTM5200PC

• KTM5200PC-L 925042795

• KTM5200PC-R 925042796

• KTM5200WA

• KTM5200WA-L

• KTM5200WA-R

• KTM5200WA*6

• KTM5200WA-L*6

• KTM5200WA-R*6

• KTM5200WB

• KTM5200WB-L

• KTM5200WB-R

• KTM5200WB*6

• KTM5200WB-L*6

• KTM5200WB-R*6

• KTM5200WB*7

• KTM5200WB-L*7

• KTM5200WB-R*7

• KTM5200WB*8

• KTM5200WB*8-L 925042416

• KTM5200WB*8-R 925042404

Simpson

• TBC

Westinghouse

• TBC
